The Chemiluminescence of Luminol and bis(2,4,6-trichlorphenyl)oxalate (TCPO)
I ntroduction
Maybe this list should be entitled "What chemiluminescent system do not
require." Most chemiluminescence methods involve only a few chemical components to actually generate light. Luminol chemiluminescence (Nieman, 1989), which has been extensively investigated, and peroxyoxalate chemiluminescence (Given and Schowen, 1989; Orosz et al., 1996) are both used in bioanalytical methods and will be the subject of this primer on chemiluminescence. In each system, a "fuel" is chemically oxidized to produced an excited state product. In many luminol methods it is this excited product that emits the light for the signal. In peroxyoxalate chemiluminescence, the initial excited state product does not emit light at all and instead it reacts with another compound, often a compound also viable as a fluorescent dye, and it is this fluorophore which becomes excited and emits light. That said, the oxalate reactions, to have practical applicability in, for instance HPLC, require a mixed solvent system (buffer/organic solvent) to assure solubility of the reagents, optimized pH, and allow compatibility with the analytes. A general discussion of these two methods, their applicability as reported in some of
the recent literature, and a discussion of the emission spectra of each--complete with
movies that show short experiments with each--will be presented. Peroxyoxalate
Chemiluminescence Primer

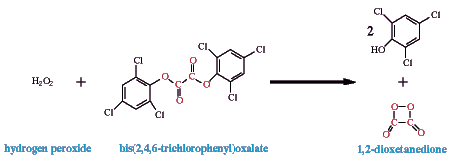

The intermediate, shown here as 1,2-dioxetanedione, excites a fluorophore. In the included movie demonstrating TCPO chemiluminescence, 9,10-diphenylanthracene acts as the fluorophore; its lambda max is 425 nm in the solvent used, tetrahydrofuran. Its reaction with the intermediate produces the excited state product which quickly emits light. The process of transferring the energy of the initial reaction, the chemical reaction of hydrogen peroxide with TCPO, to light emission from the excited state fluorophore (fluorophore*) can be sidetracked along the way by loses in each step of the process: the initial oxidation to produce the intermediate, the reaction of the intermediate with a fluorophore, and the reaction of the excited fluorophore to produce light (Orosz et al., 1996).
The initial oxidation can yield the high energy intermediate or
The high energy intermediate can react to excite the fluorophore or
Finally the excited fluorophore can loose energy by emission of light or
In normal chromatographic (HPLC) procedures, these alternate mechanistic routes can be effected by solvent and buffers (Orosz, 1989; Jennings and Capomacchia, 1988); pH (de Jong et al., 1986); catalyst (Orlovic et al., 1989; Alverez et al., 1986); and type of fuel (Orlovic et al., 1989; Orosz, 1989), oxidant (Orlovic et al., 1989), and fluorophore concentration and identify. Possibly most important for chromatographers, eluent and reagent flows (Givens and Schowen, 1989; Kwakman and Brinkman, 1992), detector volume and geometry (de Jong et al., 1990; Grayeski and Weber, 1984), and mixing parameters (Kobayashi and Imai, 1980; Sugiura et al., 1993) can all effect this method's light production. This, therefore, sets the stage for analytical methods whereby manipulating the appropriate parameter allows for the sensitive determination of hydrogen peroxide (Pontén et al., 1996; Stigbrand et al., 1994) or fluorophore content. Recently, for example, Hamachi et al. (1999) determined the concentration of
propentofylline in hypocampus extracts from rats by derivitizing the analyte to create a
fluorophore which would chemiluminesce with another peroxyoxalate, TDPO
[bis(2-(3,6,9-trioadecanyloxycarbonyl)-4-nitrophenyl)oxalate, and hydrogen peroxide
following HPLC. Propentofylline is a reported inhibitor of dopamine released during low
oxygenation events in the cerebellum. The derivatization of propentofylline was carried
out in trifluoracetic acid/acetonitrile solution using DBD-H (a benzoaxadiazole). The
detection limit for the analyte, 31 fg/injection, was about 200 times better than

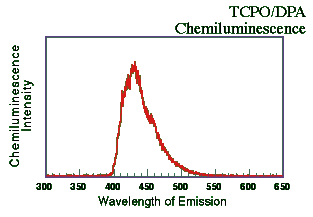

comparable HPLC-UV methods. Emission Spectrum of
Diphenylanthracene as Chemiluminescent Fluorophore Movie of TCPO + H2O2
+ Diphenylanthracene Chemiluminescence Reaction In the dark, a solution of ~0.3% H2O2 in THF was added dropwise
to approximately 8 mL of the fuel + fluorophore in THF (~25oC) in an
open-topped vial. The reaction(s) immediately produces light from the excited fluorophore.
The emission is relatively short lived but since H2O2 is apparently
limiting, a second and third dropwise addition of the oxidant yields additional bursts of
light. If you will look carefully at the end of the movie you will see a clear--yet still
yellow--solution in which all precipitates have dissolved. Also apparent to the
experimenter, but undetectable in the movie, was the formation of a gas produced by the
reaction; this appeared as a bubbling that could be seen while the reaction was still
producing light yet which stopped as the reaction reached completion, about 30 seconds
after the last (excess) H2O2 addition. This kind of gas production
has been used as evidence for the production of CO2 as a product from the
1,2-dioxetandione intermediate as detailed in the figure above. Further peroxide addition
does not yield more bubbling so this is not simply H2O2
decomposition. The process of filming this reaction is described below. Luminol
Chemiluminescence

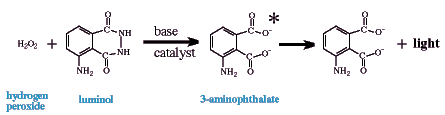

The presence of a catalyst is paramount to this chemiluminescent method as an analytical tool. Many metal cations catalyze the reaction of luminol, H2O2, and OH- in aqueous solution to increase light emission or at least to increase the speed of the oxidation to produce the emitter and therefore the onset/intensity of light production. [Some metals, however, repress chemiluminescence at different concentrations (Yuan and Shiller, 1999; see below.] This therefore can be the foundation of significantly different analytical determinations. For instance, this system can be used:
This last is particularly powerful feature of this system because many compounds complex metallic cations and thereby make themselves "known." Amino acids (Koerner and Nieman, 1987), fructose and tagatose (Valeri et al., 1997), glycerol (Robards and Worsfold, 1992), thiols (Sano and Nakamura, 1998), and serum albumin (Tie et. al., 1995) among many others have been determined using luminol chemiluminescence. Most recently, Sano and Shiller (1999) report a subnanomolar detection limit for H2O2
using luminol chemiluminescence. Their method, which was used to determine hydrogen
peroxide content in sea water, was based on the cobalt(II) catalytic oxidation of luminol.
While Co is the most sensitive luminol metal catalyst, it is also present in sea water at
very low concentrations. The pH of the luminol solution used in this work was 10.15, and
interferences from seven different metals were investigated. Interestingly some metals
interfered positively and some negatively, and Fe(III) interfered positively at one
concentration and negatively at another. Finally, very low concentrations of iron(II)
showed a significant positive interference in determination of H2O2,
but the authors used the relatively short half life of Fe(II) in marine water as a means
of eliminating Fe(II) interference in the determination of hydrogen peroxide in their
analysis by storing samples for over 1 hr before analysis. Light emission from

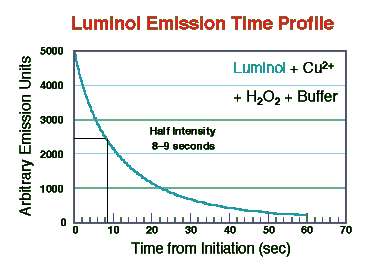

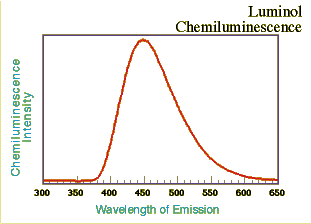

3-APA The emission spectrum was taken as before using a fluorescence spectrometer with the excitation source off. The light intensity-time decay data were taken immediately after mixing the reagents and for 60 seconds. The lambda max is at approximately 445 nm, slightly longer wavelength than the TCPO/DPA system described above. Online presentations of the light intensity-time decay aspects of the luminol reaction with hydrogen peroxide and differing concentrations of Cu(II) as catalyst are also available elsewhere (Iwata and Locker, 1998); however, with this reagent mixture the onset of emission was almost instantaneous and reached a maximum within a few seconds. As the figure shows the light intensity decayed to approximately 50% of maximum at
about 8 seconds. Iwata and Locker found that both the initial intensity and rate of decay
in this kind of system was dependent on Cu(II) content. In the TCPO system described
above, Orosz et al. (1996)
reported that decay rate, rise constant, maximal light intensity, and quantum efficiency
depended on hydrogen peroxide concentration. These authors present a comprehensive review
of efforts to model the optimization of reagent flow rates and concentrations on HPLC
detector responses with the TCPO reaction(s). Movie of Luminol
Chemiluminescence Process for producing
the movies
Bibliography
